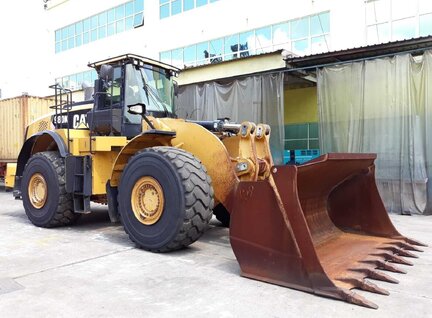

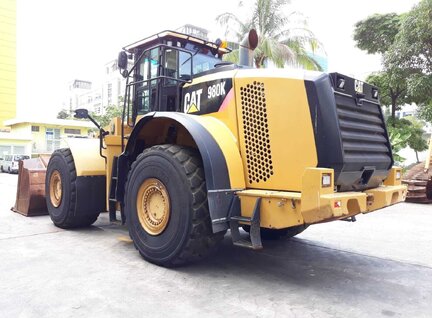

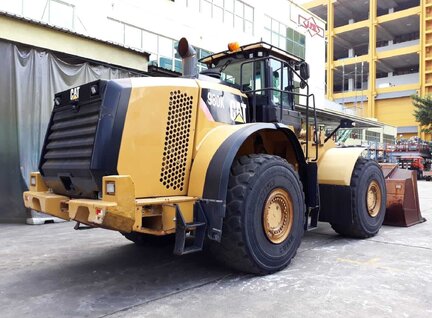

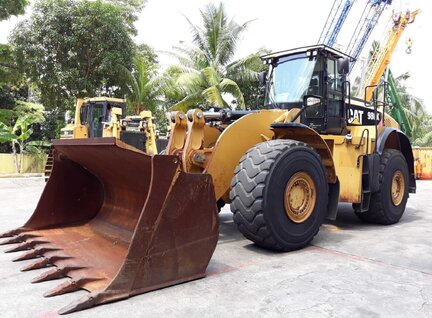

Caterpillar (CAT) 980K Loader (2012) | Bán thiết bị qua sử dụng | Singapore

Số ID sản phẩm: 5443  •  Đăng November 27, 2021  •  11,932 lượt xem

Thương hiệu:	Caterpillar (CAT)
Model:	980K
Năm sản xuất:	2012

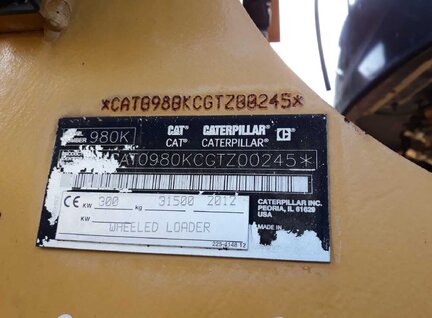

Số sêri:	CAT0980KCGTZ00245
Tình trạng hiện tại:	Đã sử dụng

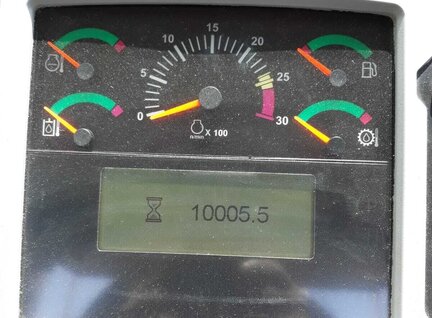

Số giờ hoạt động:	10005
Giá tiền:	SGD 235,000 (thương lượng)
Địa điểm của thiết bị:	Singapore
Có sẵn để xuất khẩu:	Có. Vui lòng liên hệ.
Người bán:	Đại lý (Đã xác minh)

Engine Operating Specifications Hydraulic System
Engine Model
Cat® C13 ACERT™
Max Gross Power (1,600 rpm) – SAE J1995
303 kW
406 hp
Max Net Power (1,600 rpm) – ISO 9249
274 kW
369 hp
Max Net Power (1,600 rpm) – SAE J1349
274 kW
369 hp
Max Net Power (1,800 rpm) – EEC 80/1269
274 kW
369 hp
Peak Gross Torque (1,300 rpm) – SAE J1995
2089 N·m
1,541 ft-lb
Peak Net Torque
1959 N·m
1,445 ft-lb
Static Tipping Load Full 37° Turn –
19 267 kg
42,464 lb
ISO 14397-1*
Static Tipping Load Full 37° Turn –
20 484 kg
45,148 lb
Rigid Tires**
Breakout Force 238 kN 53,548 lb
• For 5.4 m3 (7.1 yd3) general purpose
buckets with BOCE.
* Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
** Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Transmission
Steering System Piston
Pump Type
Implement System – 460 L/min 121.5 gal/
Maximum Pump min
Output (2,200 rpm)
Implement System – 31 000 kPa 4,496 psi
Maximum Operating
Pressure
Implement System – 300 L/min 79.3 gal/
Optional 3rd Function min
Maximum Flow
Implement System – 20 700 kPa 3,000 psi
Optional 3rd Function
Maximum Pressure
Hydraulic Cycle 6.4 Seconds
Time – Raise from
Carry Position
(1,200 rpm) –
SAE J1349
Bore
130 mm
5.1 in
Stroke
157 mm
6.2 in
Displacement
12.5 L
762.8 in3
• Cat engine with ACERT Technology – meets Tier 4 Interim/Stage IIIB emission standards.
Standard Torque Converter Forward 1 6.8 km/h 4.2 mph
Forward 2 12.1 km/h 7.5 mph
Forward 3 21.5 km/h 13.4 mph
Forward 4 37.8 km/h 23.5 mph
Reverse 1 7.8 km/h 4.8 mph
Reverse 2 13.9 km/h 8.6 mph
Reverse 3 24.5 km/h 15.2 mph
Hydraulic Cycle 1.7 Seconds Time – Dump, at Maximum Raise
Hydraulic Cycle 3.3 Seconds Time – Lower, Empty, Float Down
Hydraulic Cycle Time – Total 11.4 Seconds
• Cycle time with rated payload.
Weights Reverse 4 42.8 km/h 26.6 mph
Brakes
Lockup Torque Converter
Operating Weight 31 244 kg 68,862 lb
Forward 1 6.9 km/h 4.3 mph Brakes Meet OSHA,
• For 5.4 m3 (7.1 yd3) general purpose buckets
SAE J1473 OCT90
Forward 2 13 km/h 8.1 mph
with BOCE.
and ISO 3450-1985
Forward 3 23 km/h 14.3 mph
required standards
Buckets Forward 4 40.7 km/h 25.3 mph
Bucket Capacities 4.00 to 12.20 m3 • Refer to bucket selection chart.
5.25 to 16.00 yd3
Reverse 1 Reverse 2 Reverse 3 Reverse 4
7.9 km/h 14.8 km/h 26.1 km/h 40.0 km/h
4.9 mph 9.2 mph 16.2 mph 24.9 mph
• Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 930 mm (37 in) roll radius.
14
